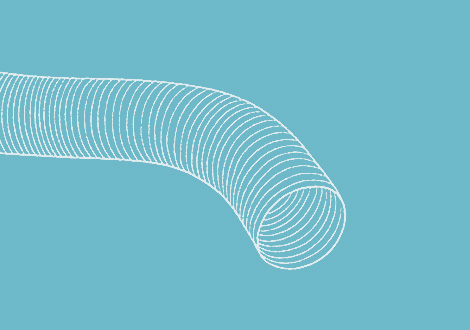

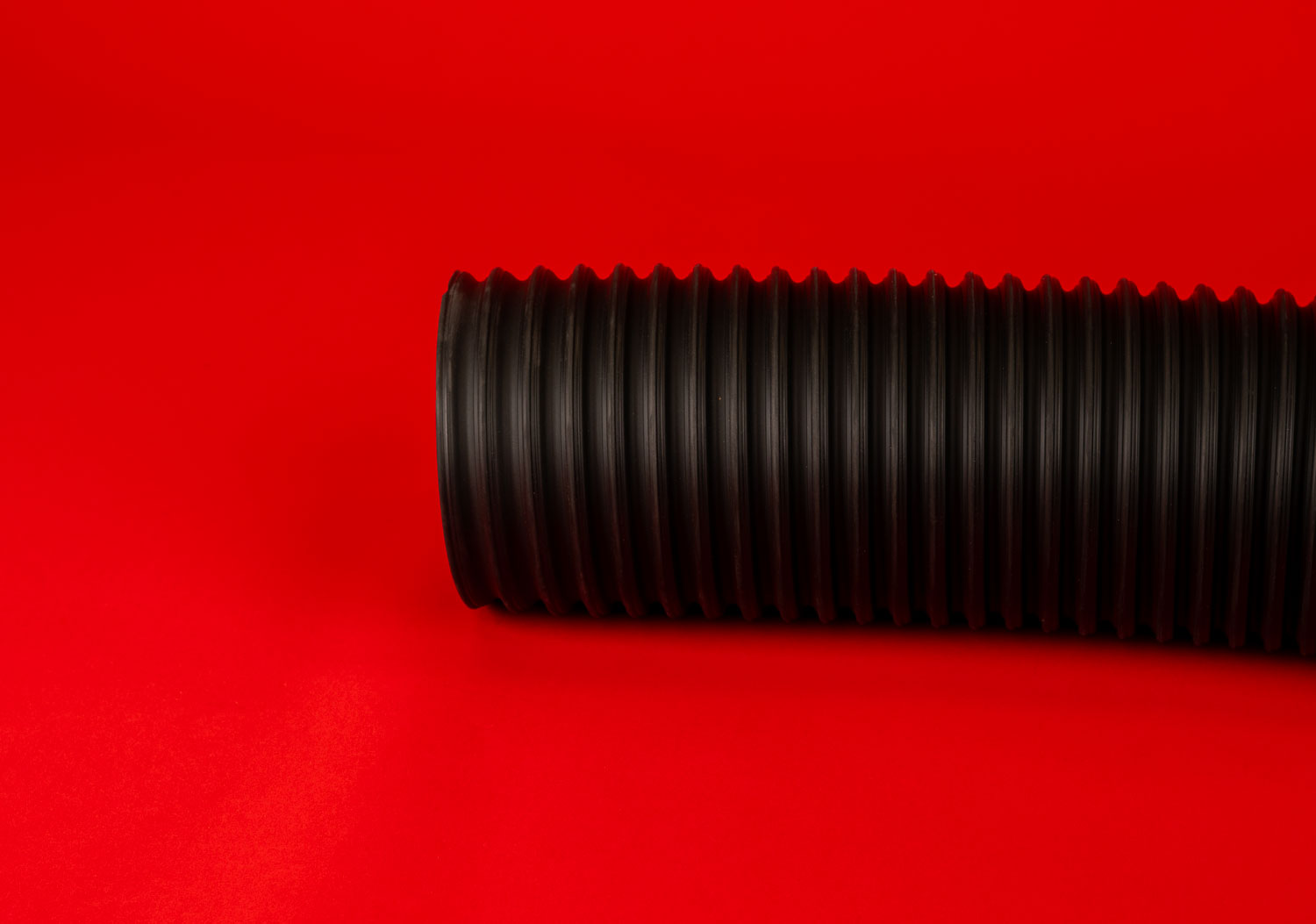

Thermoplastic Rubber Flexible Hose is a black, highly flexible ducting hose designed for dust collection applications involving woodworking, metalworking, powders, and other industrial materials. Constructed from thermoplastic rubber molecularly bonded to a spring steel wire helix, this hose offers excellent flex fatigue resistance, shape retention, and a smooth interior for superior airflow and system efficiency.
DOWNLOAD PDF

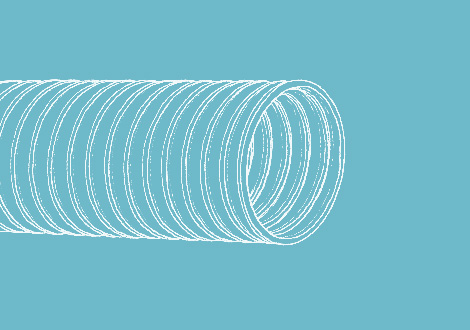

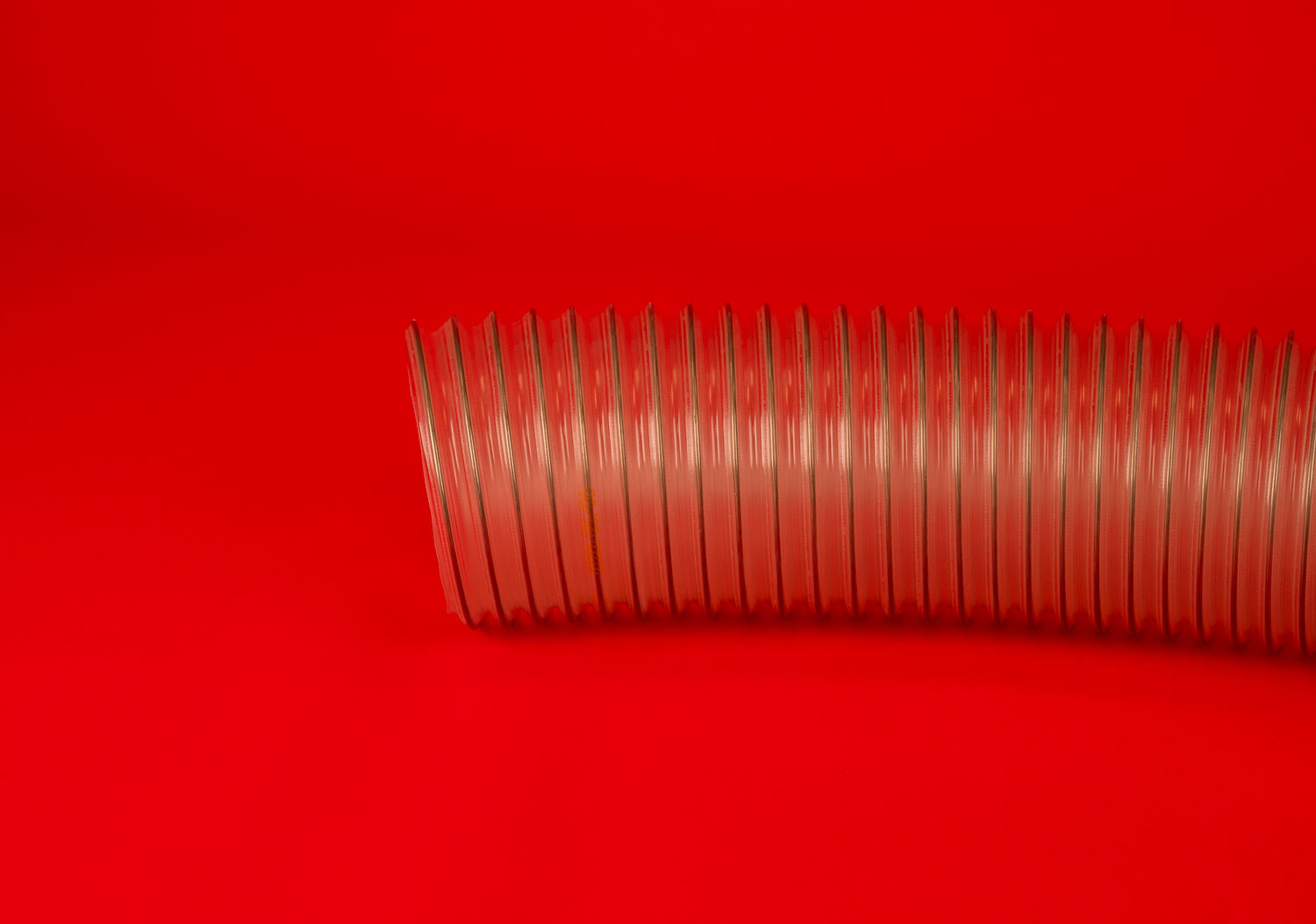

Both bronze-coated spring steel wire helix and a rigid white external ABS helix Constructed with a spiral, co-extruded design provide structural reinforcement and wear protection. It includes an embedded copper grounding wire for permanent, non-humidity dependent electrostatic discharge (ESD) protection and maintains a good surface resistivity and tolerance for applications with wide temperature ranges (-65° F to 225° F).
DOWNLOAD PDF

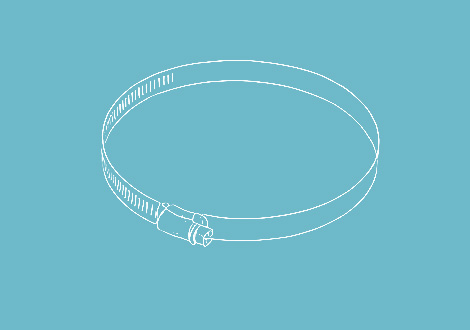

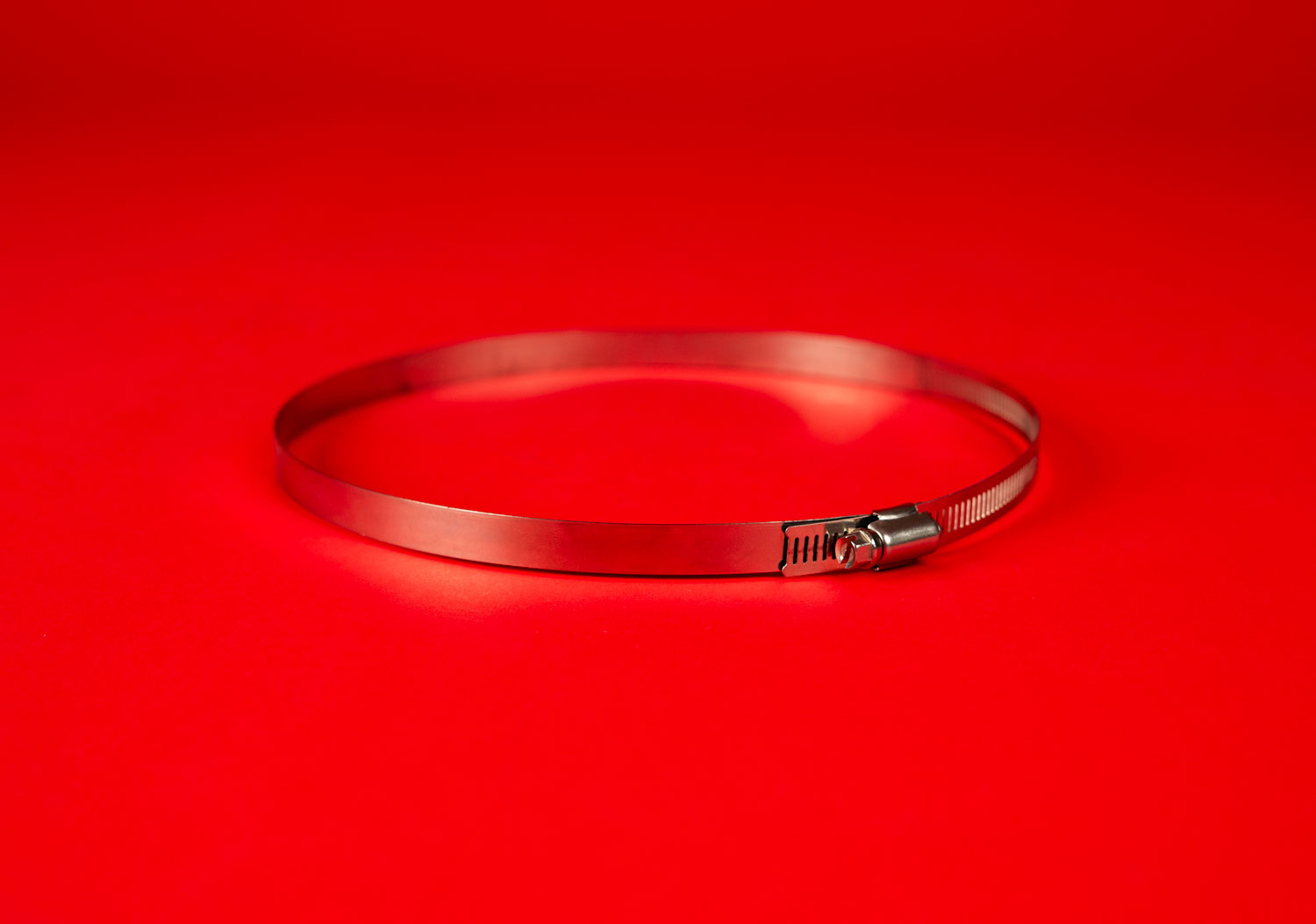

Hose Clamp is designed to securely fasten black rubber hose, clear rubber hose, or static dissipative hose to hose adapters, duct fittings, or machinery. These worm-drive clamps are also known as bridge clamps and are specially engineered to align with the spiral support of wire-reinforced duct hose, ensuring a tight and reliable seal.
DOWNLOAD PDF

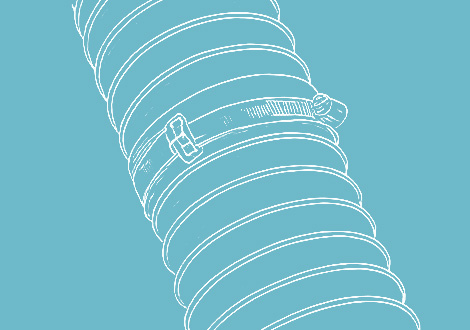

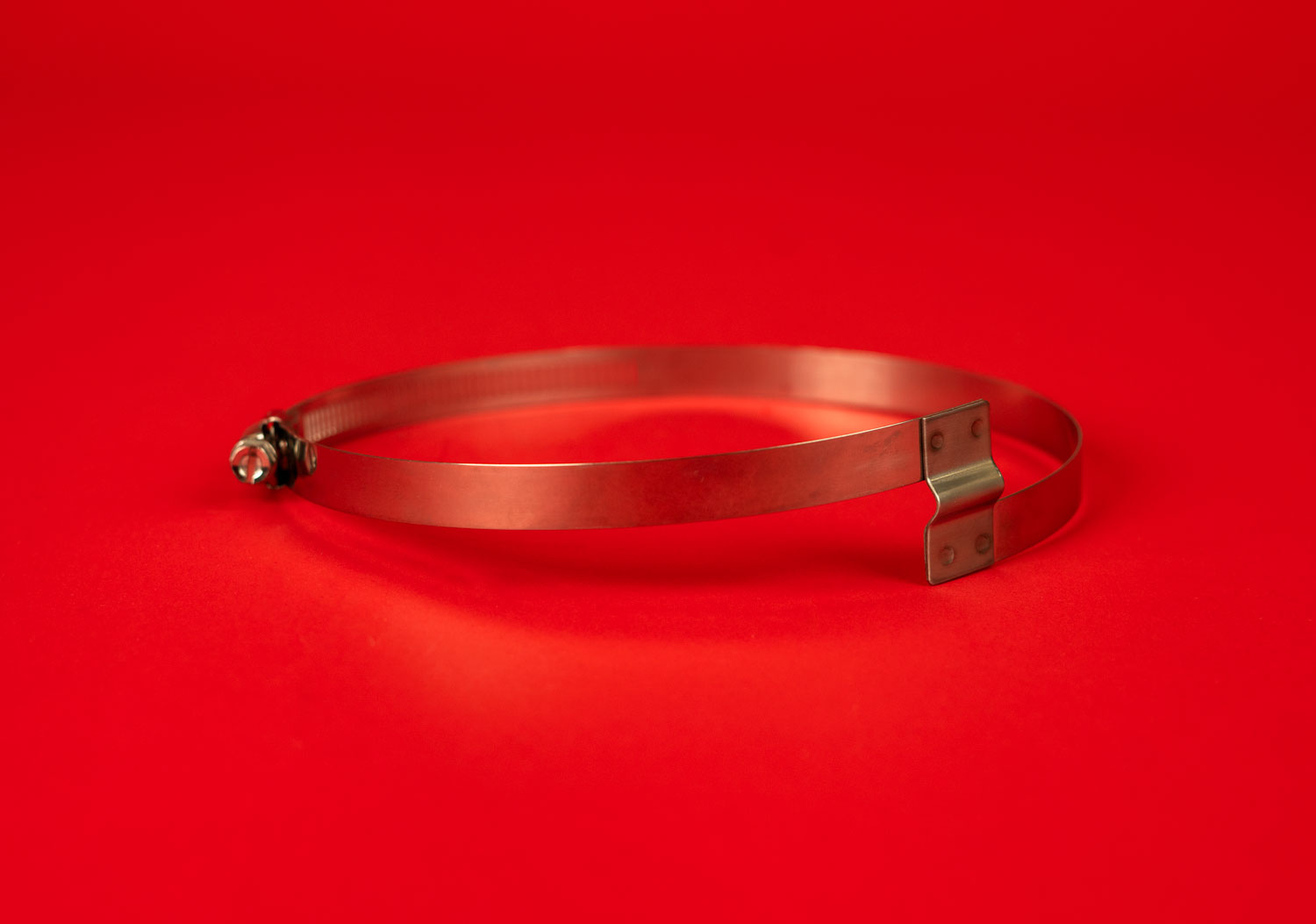

This versatile clamp can connect black rubber hose, clear rubber hose, or static dissipative hose to hose adapters, duct fittings, or machinery. With being engineered to fit over the hose’s wire helix and align with its spiral support it creates a tight, leak-proof seal. Available in sizes from 2" to 20", and in both clockwise and counterclockwise designs.
DOWNLOAD PDF

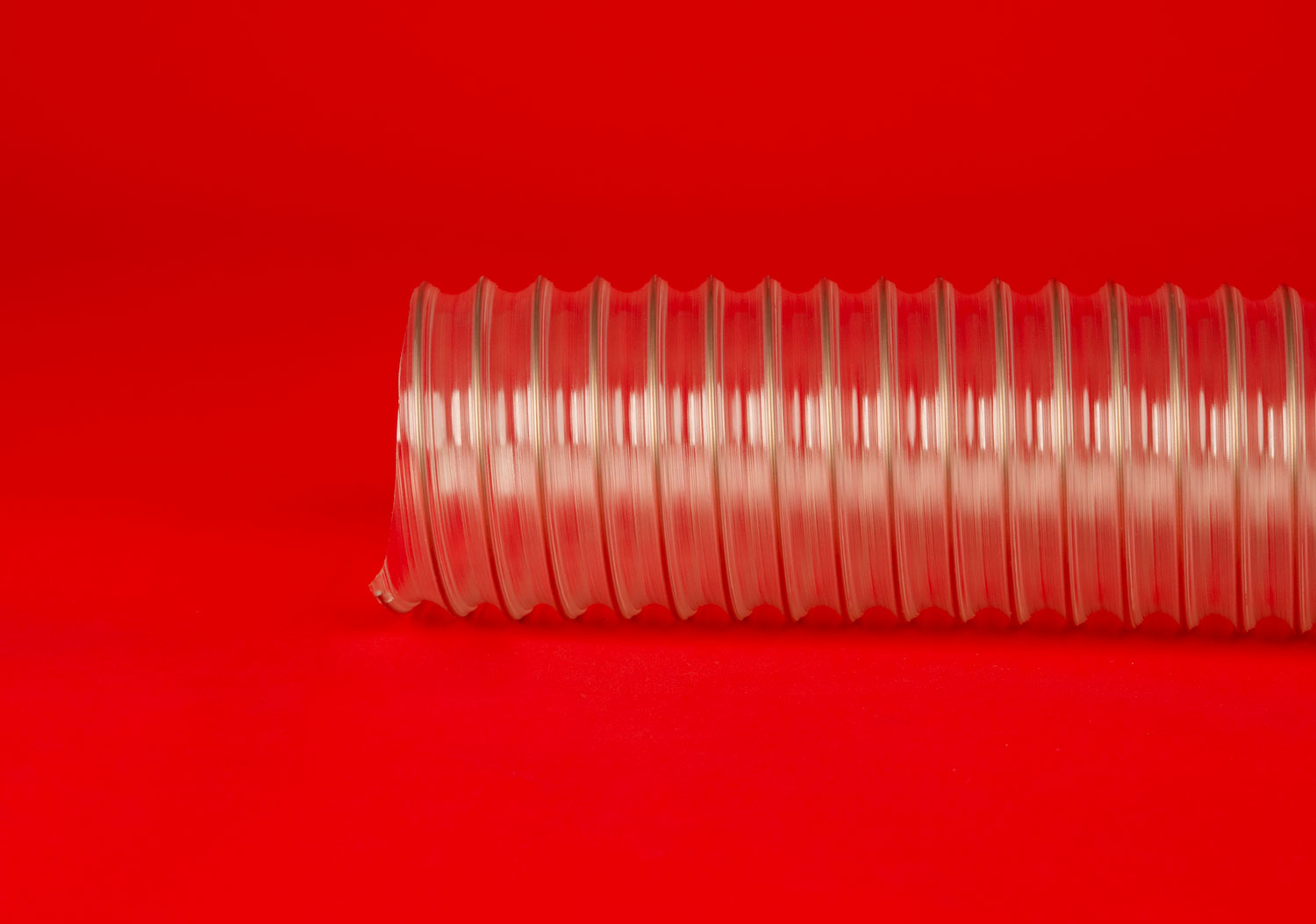

These flexible industrial hoses are designed for demanding dust-collection applications involving wood, metal, powders, and other particulate materials. The first style features a black thermoplastic rubber construction reinforced with a spring steel wire helix, offering a wide temperature rating from –65°F to 275°F and availability from 1″ to 24″ diameters, sold in 5' increments (up to 50' for 1″–12″ and 25' for 14″–24″). For proper installation, bridge hose clamps, hose clamps, and hose adapters are ordered separately. The second style is an all-extruded, molecularly bonded urethane duct with encapsulated wire, providing maximum abrasion resistance, excellent tear strength, and reduced turbulence for efficient airflow. Its clear 0.030″ urethane construction is FDA-approved, available in 2″–12″ diameters, weighs 0.84 lbs/ft, comes in 5' lengths with a 2:1 compression ratio, and handles temperatures from –65°F to +200°F.
