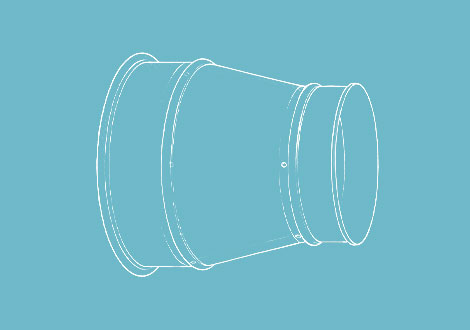

Reducers provide a transition from one duct pipe or fitting size to a smaller size, helping maintain airflow efficiency when connecting to branch lines. They are essential components for ductwork projects and are compatible with other fittings like elbows, branches, rolled-lip pipes, and adjustable sleeves, making installation straightforward.
DOWNLOAD PDF

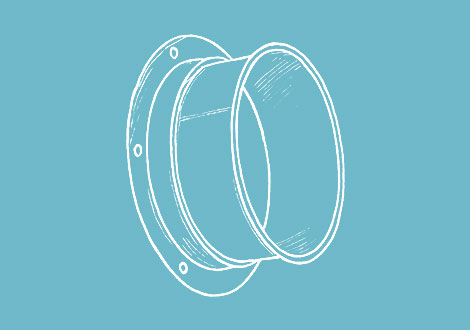

Connection adapters are used to switch from one connection type to another. When connecting to an existing system, machine or duct component, it is often necessary to alter the ducting connections to a different connection type. This is most common when adding rolled-lip, Clamp Together Duct, to the non-clamping systems.
DOWNLOAD PDF

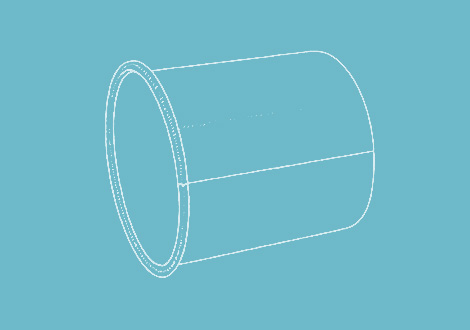

Machine Adapters provide a reliable and simple connection between rolled-lip ductwork and machines requiring dust or fume extraction. One end features a rolled edge compatible with Clamp Together Duct systems, while the other end is a plain edge designed to fit over or into a machine outlet.
DOWNLOAD PDF

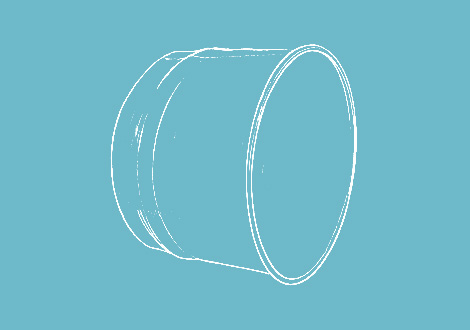

Rolled Lip Hose Adapters are used to connect rolled-lip ductwork to flexible hose, providing a secure and adaptable transition between rigid and flexible components. One end features a rolled lip for compatibility with Clamp Together Duct systems, while the other end is a raw, beaded connection designed to fit inside flexible hose.
DOWNLOAD PDF

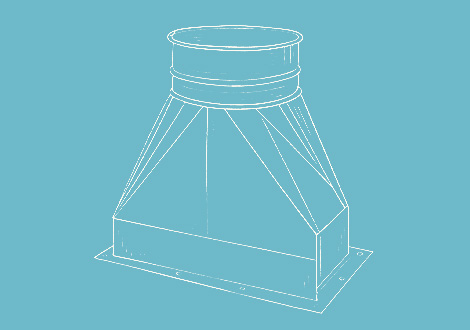

Rectangular to Round Transitions (also referred to as square nozzles when used for localized collection) are designed to connect square or rectangular ductwork to round duct systems. They feature a round SNAPLOCK clamp or flanged end and a square or rectangular end, making them ideal for transitioning duct shapes or serving as a hood for dust or fume collection near the source.
DOWNLOAD PDF

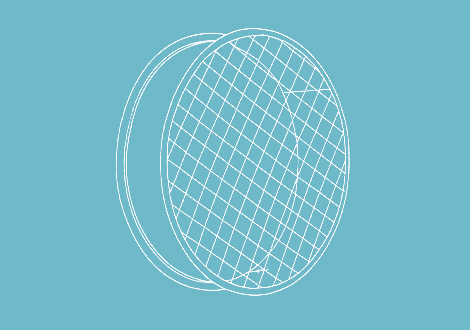

End Caps are used to terminate or block off unused ducting ports in a system. They are ideal for sealing ports reserved for future expansion or where machinery has been relocated. End Caps can also feature an integrated bird screen for applications requiring ventilation while preventing debris or foreign objects from entering the ductwork.
DOWNLOAD PDF
Designed for use with flanged ductwork, these end plates feature a flat plate construction with an industry-standard Angle Flange hole pattern. Used to cap the end of duct to prevent unnecessary airflow release there are variants available to match other ducting systems.
