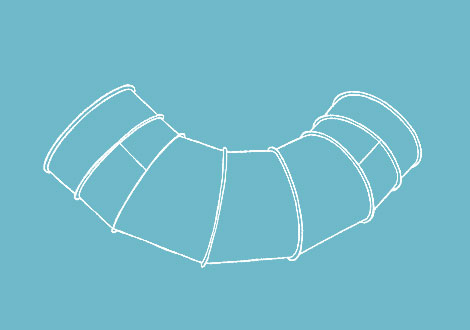

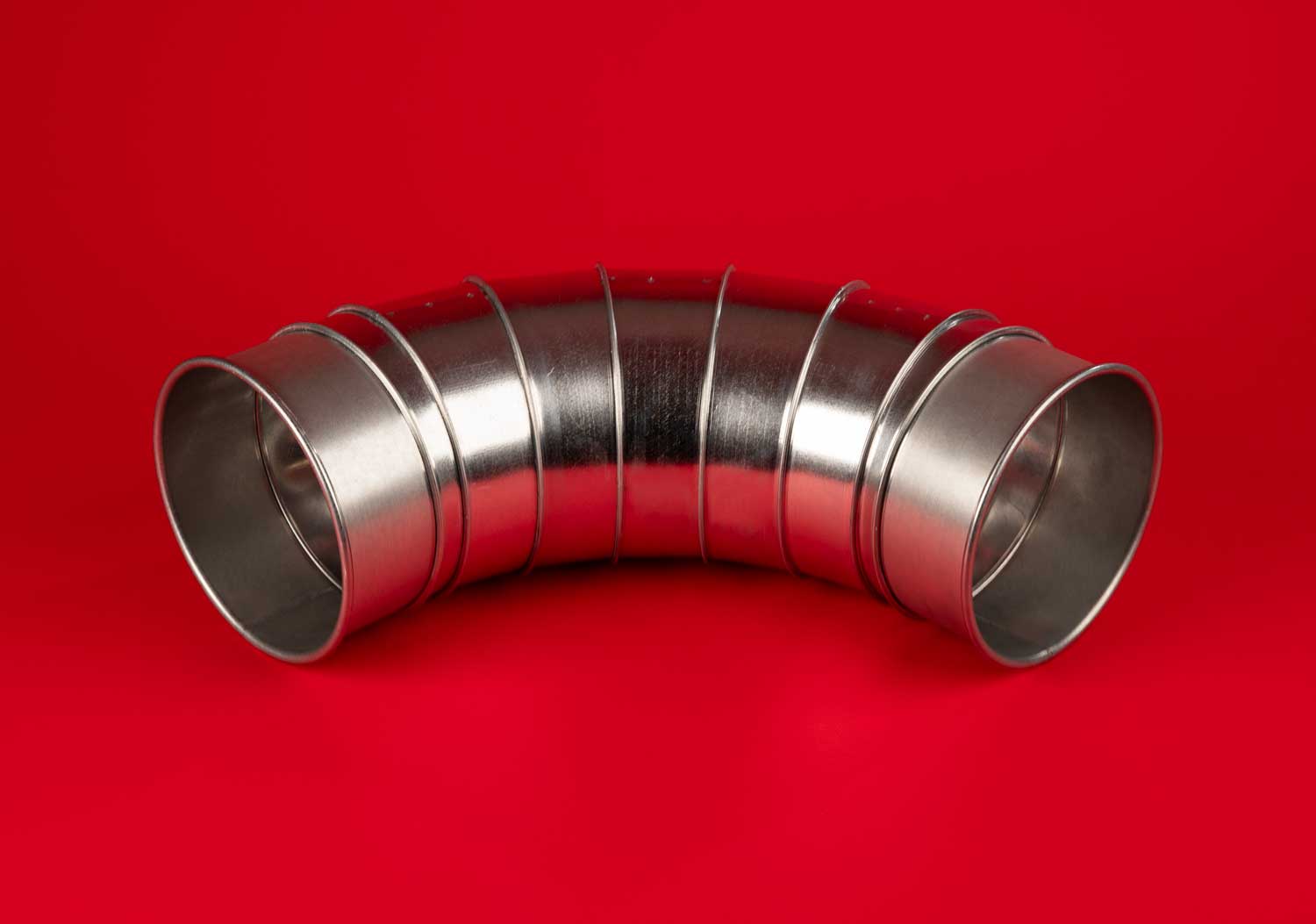

Elbows with the same degree but having a longer radius decreases the amount of energy needed to go the distance.
DOWNLOAD PDF
SNAPLOCK and stitch weld both offer flexible, efficient solutions for your ductwork needs. Whether you require quick assembly or a tight, secure fit, we’ve got you covered.
DOWNLOAD PDF

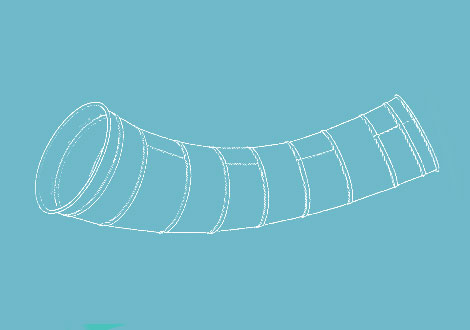

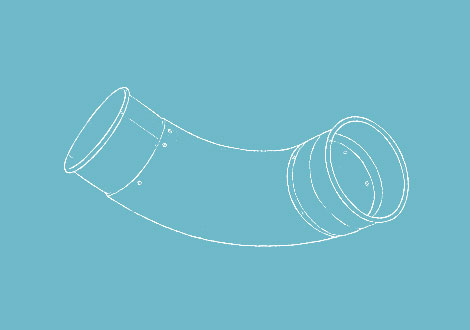

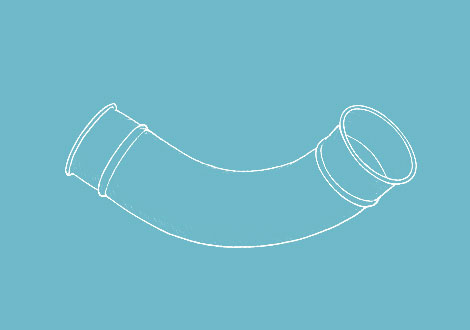

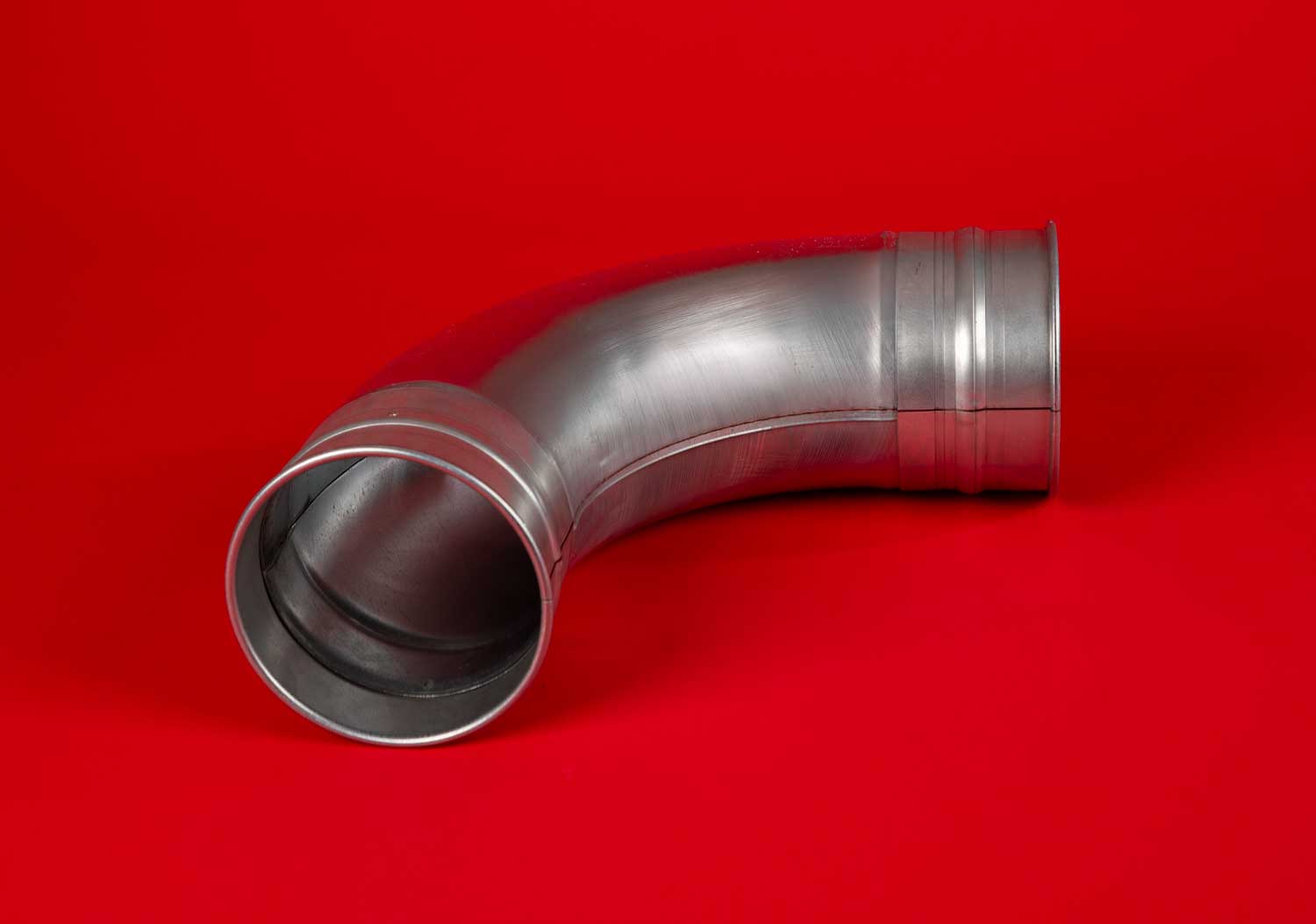

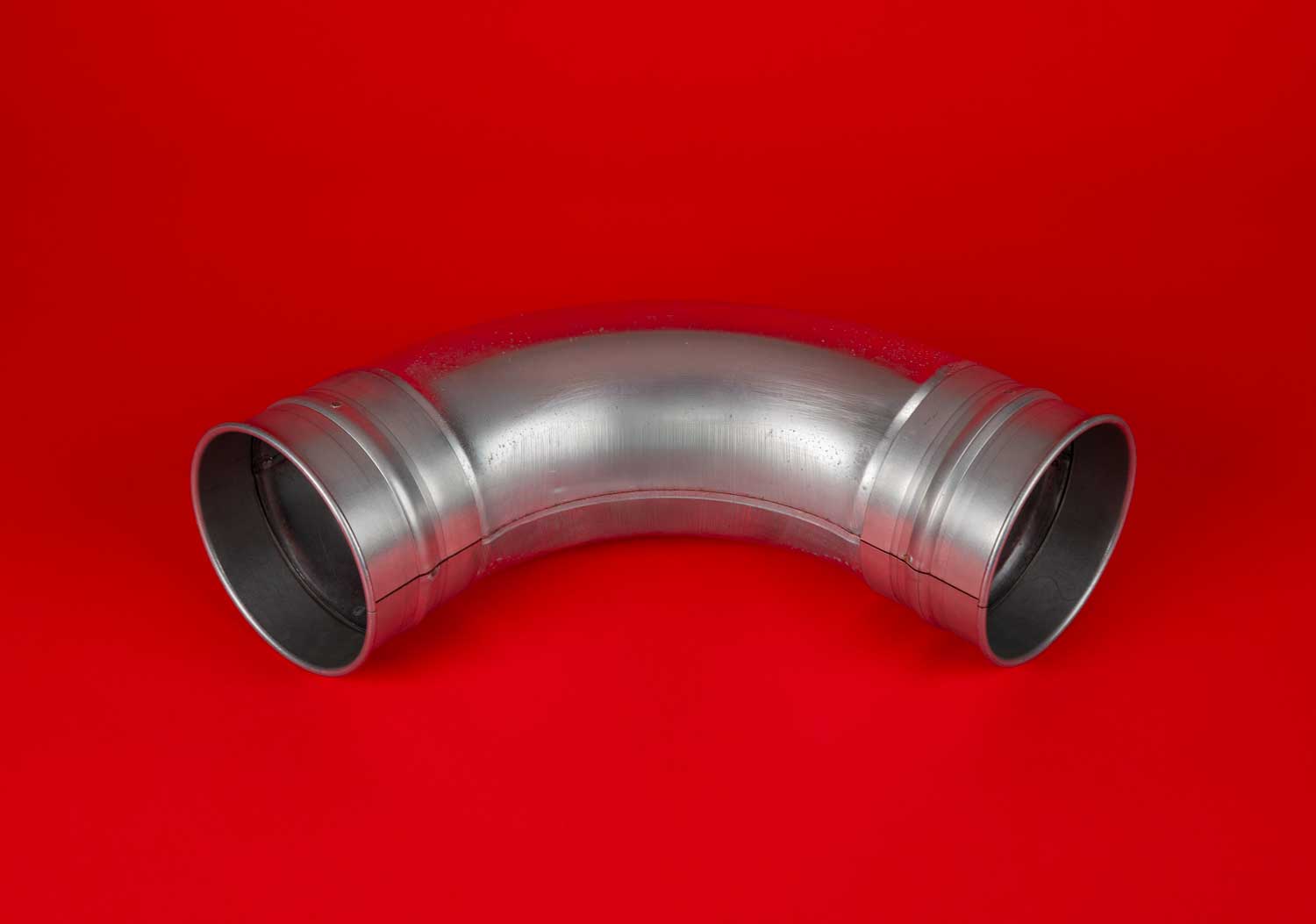

Long Radius Tubed Elbows are constructed from seamless, mechanically bent tubing, providing smooth airflow ideal for applications such as paper trim and oil mist. Designed with rolled ends for SNAPLOCK connections, they allow quick assembly, disassembly, and relocation. The elbows are directional, with the collar positioned on the outside of the tube for outlets and on the inside for inlets, and are available in 30°, 45°, 60°, and 90° angles with a standard radius of 2.5 or an optional 1.5. Made from galvanized steel or stainless steel (304SS, with stainless available in 3"–8"), they come in 11, 14, or 16 gauge and can be ordered with other end styles—be sure to specify the direction if not using SNAPLOCK ends.
