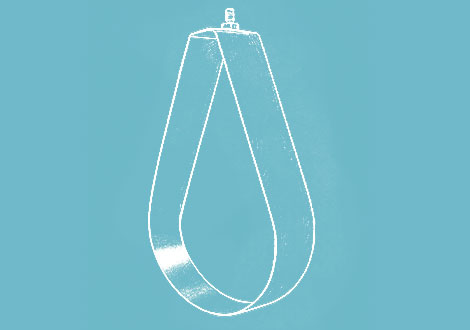

The tear-drop hanger is a single-point suspension solution, providing stability and ease of installation with just one connection point. Its unique tear-drop shape simplifies the process of hanging a variety of ductwork. To install, combine the hanger with a threaded rod or other suitable fastener to secure it to the ceiling. Simply screw the threaded rod into the threaded hole on top of the hanger. The hanging height can be adjusted even after the ductwork is in place, allowing for precise positioning and alignment.
DOWNLOAD PDF

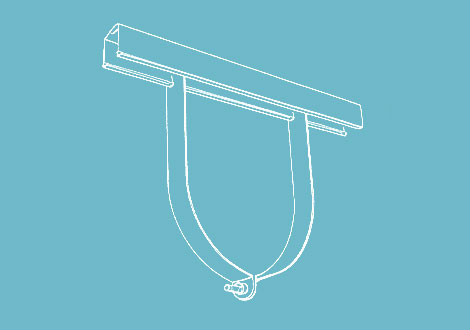

These duct hangers are designed for efficient strut-channel mounting, making them ideal for installing ductwork close to ceilings equipped with structural struts. Built from galvanized steel or 304 stainless steel, each hanger includes the necessary nut and bolt for fast, streamlined installation. Tested by MET Laboratories, they reliably support up to 170 lbs on 9" ducting and up to 850 lbs on 20" ducting, ensuring dependable performance in demanding environments. Stocked in sizes from 3" to 24" and available for overnight delivery, these hangers offer exceptional value, helping you save time, reduce labor, and increase productivity on any ductwork project.
DOWNLOAD PDF
Pipe Hangers, also known as saddle hangers, brackets, or air duct hangers, provide one of the most secure and stable support methods for ductwork installations. Designed with half-round sections that cradle the duct, these hangers create a rigid connection that prevents movement in any direction. Standard sizes from 3" to 24" are manufactured from 14-gauge galvanized steel (16-gauge in stainless steel), while sizes over 24" utilize heavy-duty 3/16" flat bar steel for maximum strength. Each unit is supplied in two bolted halves and installed using two threaded rods (not included) to deliver superior stability, with recommended spacing of one hanger for every 10 feet of duct. Nuts and bolts are included, and dual points of contact ensure exceptional support and durability in demanding applications.
DOWNLOAD PDF

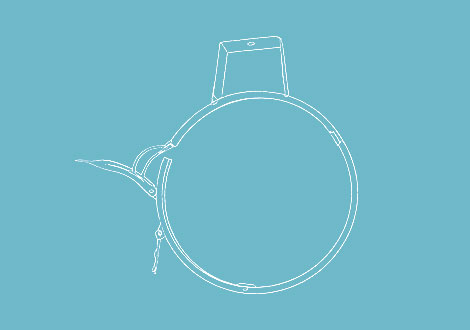

The Clamp Hanger uses a genuine snaplock mechanism in place of traditional nuts and bolts, allowing for fast, easy installation and simple repositioning when needed. Constructed from galvanized steel or 304 stainless steel, it provides durable support but is not intended for use as a clamp connection. Each hanger includes a 7/16" clearance hole for mounting.
DOWNLOAD PDF

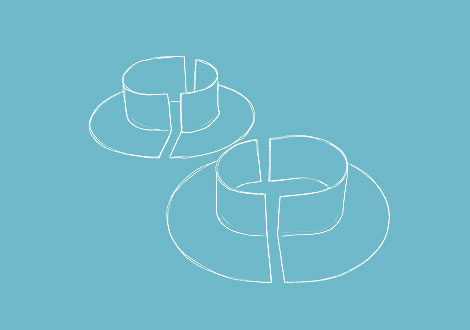

Wall Flashing offers reliable weather protection for outdoor applications and a clean, finished cover for indoor wall penetrations. Each order includes one set, providing both an inside and an outside flashing (four halves total). Wall Flashings are available in galvanized steel or 304 stainless steel, with optional 316 stainless steel or carbon steel also available.
DOWNLOAD PDF
Roof Skirt offers durable weather protection for roof penetrations and is securely bolted at the seam. Designed for slopes up to 23°, it is available in galvanized steel or 304 stainless steel, with optional 316 stainless steel or carbon steel also offered.
DOWNLOAD PDF

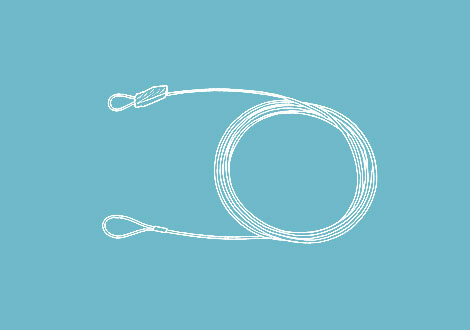

Often called 'trapeze' or cable hangers, Gripple hangers are a fast, easy, and flexible method for suspending ductwork, particularly SnapLock ducts. The duct is supported by cables secured with Gripple-style clamps, forming a ‘trapeze-like’ hammock. This system allows suspension from nearly any angle while providing strong vertical support, though it offers limited horizontal stability. Typically, one hanger is used per 10 feet of duct. Gripple hangers save time and reduce labor costs, making them the most common choice for duct suspension.
